E02 III AAA / 10440 Flashlight

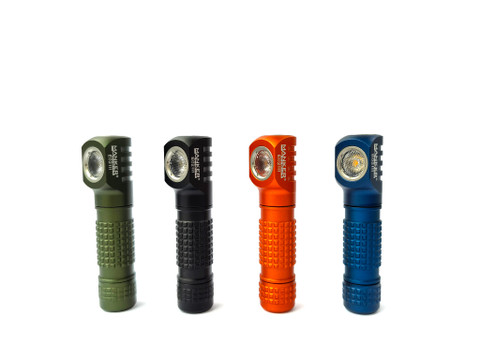

Mankerlight E02 III is the Brightest Everyday Carry Angle Flashlight in 10440 / AAA Class
560 Lumens Illumination | Best-in-Class Features | Minimal Form, Maximum Utility

Features:
1. the 3th Generation
- We' ve redesigned E02 III from the ground up, building on the history of the original (Gen1 and Gen2) and incorporating feedback from you, our customers.
2. Best-in-Class Technology
- E02 III uses our most popular and highly-requested technologies including brightest in class (maximum 560 lumens output), most effective dual constant current drivers (Non-PWM), wide range of voltage design, advanced intelligent temperature regulation, high performance customized LED or high CRI Nichia 519A LED, copper MCPCB with the employed thermoelectric separation technology, immersion gold and gold plated connector to ensure an effective conductivity, high temperature resistant total internal reflection (TIR) lens, Low voltage protect (LVP) technology and reverse polarity protection technology.
3. Premium Materials
- Made by aircraft-grade 6061-T6 aluminum alloy and 304 stainless steel. The whole shell (head, body tube and tail) surface have Type-III hard-anodized process for good durability and corrosion resistance. The whole head shell is precisely CNC machined from a single block of aluminum for better heat dissipation and rugged construction. The aggressive style knurling on the body tube and the tail are precisely CNC machined for perfect grip. The whole shell and screw-on bezels surrounding button & TIR lens have bead blasted process, the bottom of the tail and surrounding the button are precisely filleted for a comfortable hand-touch feeling.
4. Small Enough for Daily Carry
- E02 III offers an incredibly lightweight and ultra-compact design. E02 III rides easily in your pocket (including your coin pocket), it' s small though that you won' t even know it' s there.
5. Multi-fuel Design
- E02 III comes with one Mankerlight Type-C USB rechargeable protected 300mAh 10440 li-ion battery, also compatible with AAA NiMH and AAA Alkaline battery on the market.
6. Easy-to-operate Versatile User Interface
- E02 III as similar as E03H III perfectly packs multiple brightness modes, Strobe, Beacon and SOS into the tiny package, bringing its versatility to the next level. One-fingertip press the metal button on the head to adjust the brightness of each mode.
7. Removable & Reversible Pocket Clip
Use this clip to loop your E02 III in your trouser pocket and backpack, Reverse the clip to attach onto belt, front pocket, brim of hat, etc. to free your hands. Remove the clip whenever you want.
8. Adjustable Elastic Headband (Option)
This feature is optional. If you selected this option to purchase, you will get one adjustable elastic headband in your package. E02 III retain this feature from previous versions. We improve the quality and update the logo print on the headband. Installing your E02 III into the holder of this headband, E02 III EDC flashlight is changed to a headlamp for working, or dog walking etc.
9. Stronger Magnetic Tailcap
-E02 III retain this feature from previous versions, but we boost the strength and the size of magnet in tail. It can strongly attach to any metal surface, providing versatile, hands-free lighting. Ideal for close-up distance illumination.
10. New Lock/Unlock Feature to Prevent Accidental Activation
Base on feedback from previous versions' users, Simple to operate is better, so we have modified new Lock/unlock program. From OFF status, just long press 5 seconds to LOCK flashlight. To UNLOCK, the same 5-second long press to turn ON.
11. Waterproof IP68, 2 Meters Underwater
- E02 III have IP68 waterproof level, pass the 2-meter water depth test. so you can use it in any weather without worry and prevents damage if accidentally dropped into the water.
12. 2 Meters Drop-resistant
- Pass the 2-meter drop test on 6 dropping surfaces. No worry for use in rugged, high-impact environments.

Specifications
• Light Source: 1x customized 6500K cool white LED emitter or 1x NICHIA 519A-V1 4000K high CRI R9080 LED emitter
• Light Modes: Moonlight mode (Mo 1 level - Mo 2 level - Mo 3 level) + General mode (Low - Medium - High) + Turbo + Special mode (Strobe - Beacon - SOS)
• Maximum Output: 560 lumens (using Mankerlight 10440 USB-C Li-ion Battery)
• Maximum Beam Intensity: 1,611 cd (using Mankerlight 10440 USB-C Li-ion Battery)
• Maximum runtime: 388 hours 55 minutes (using NANFU 1.5V LR03 AAA Alkaline battery)
• Maximum Beam Distance: 80 meters (262.47 feet)
• Impact Resistance: 2 meters
• Waterproof Standard: IP68 rated, tested 2 meter underwater for 60 minutes
• Battery compatible: 1x button-top 10440 li-ion / 1x Alkaline AAA / 1x Ni-MH AAA
• Working Voltage: 0.8 V - 4.2 V
• Driver: High efficiency constant current circuit (both 10440 and AAA)
• Body Material: Aircraft-grade 6061-T6 aluminum alloy with Type-III hard-anodized
• Clip Type: Removable & reversible clip
• Clip Material: 304 stainless steel
• Button Material: 304 stainless steel with bead blasted finish
• Screw-on Bezel Material: 304 stainless steel with bead blasted finish
• Connector Finish: immersion gold and gold plated
• Optic: high temperature resistant PMMA total internal reflection (TIR) lens
• Size: 72.3mm (length) x Φ15.2mm (body dia.) / 2.85" x 0.60";
           Clip groove: Φ13.9mm (dia.) x 4mm(width) / 0.55" x 0.15"
• Weight: 23.9 g | 0.84 oz (without battery),
               32.4 g | 1.14 oz (included USB-C 10440 battery)

Package content
1x Mankerlight E02 III flashlight
1x Mankerlight 300 mAh protected 10440 lithium battery with Type-C USB port
1x Type-C USB charging cable
1x Stainless steel reversible pocket clip
1x Spare waterproof o-ring
1x User manual

Operating Instructions
- Lock/Unlock: Locking out the flashlight when not in use is highly recommended. From OFF status, just long press 5 seconds to LOCK OUT. The flashlight will then blink two times to indicate that it has been LOCKED. To UNLOCK, long press 5 seconds again, flashlight will turn on last used brightness level in general mode to indicate it has been unlocked.
- General Mode: From OFF status, simply press and hold down to low level. Press and hold down to cycle through the different levels: Low > Medium > High > back to Low. From any of these levels, click once to turn OFF and store that last level into level memory.
- Moonlight Mode: From OFF status, long press 1.5 seconds to Moonlight mode. Press and hold down to cycle through the different moonlight levels: Mo1 > Mo2 > Mo3 > back to Mo1. from different moonlight levels, click once to turn OFF and store that last moonlight level into moonlight level memory.
- Turbo: From OFF or from other levels, double click to turn on Turbo. If a single click after this turns the flashlight OFF or if double click again or long press after this turns to turn on the level of general mode last used or if triple click (click 3 times fast) after this turns to special mode.
- Special Mode: From OFF or from other levels, triple click (click 3 times fast) to turn on Strobe. Press and hold down to cycle throught different levels: Strobe > Beacon > SOS back to Strobe. From any of these levels, click once to turn OFF.

Tip1: E02 III have memory function
Tip2: E02 III have low voltage protection (LVP) function. When the battery is low, it will stepdown to ultra-low level and keep its brightness in a certain time, and then turn off automatically when the battery is out of power. so after stepdowning to ultra-low brightness, it is time for you to recharge your battery. For example, when turning on general mode but getting ultra-low brightness. it prompts you need to charge or replace the battery.

Technical Data of 6500K Cool White
Power by Mankerlight 300mAh 3.7V USB-C 10440 li-ion battery:
Moonlight 1 level: 0.1 lumens, 277 hours 25 minutes;
Moonlight 2 level: 1 lumens, 104 hours 30 minutes;
Moonlight 3 level: 2 lumens, 53 hours 25 minutes;
Low level: 25 lumens, 6 hours 06 minutes;
Medium level: 80 lumens - 5.5 lumens, 1 hours 27 minutes + 1 hours 37 minutes;
High level: 290 lumens - 200 lumens - 5.5 lumens, 2 minutes + 26 minutes + 2 hours 30 minutes;
Turbo level: 560 lumens - 200 lumens - 5.5 lumens, 1 minutes + 24 minutes + 2 hours 45 minutes;
Strobe: 560 lumens
Beacon: 560 lumens
SOS: 560 lumens
Maximum light intensity: 1,611 cd
Maximum beam distance: 80 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes

Powered by Panasonic Eneloop Pro 950 mAh 1.2V AAA Ni-MH Battery:
Moonlight 1 level: 0.1 lumens, 170 hours 49 minutes;
Moonlight 2 level: 1 lumens, 73 hours 11 minutes;
Moonlight 3 level: 2 lumens, 36 hours 32 minutes;
Low level: 8 lumens, 8 hours 48 minutes;
Medium level: 30 lumens - 2 lumens, 2 hours 12 minutes + 54 minutes;
High level: 80 lumens - 60 lumens - 2 lumens, 3 minutes + 50 minutes + 1 hour 28 minutes;
Turbo level: 170 lumens - 60 lumens - 2 lumens, 1 minute + 54 minutes + 1 hour 48 minutes;
Strobe: 170 lumens
Beacon: 170 lumens
SOS: 170 lumens
Maximum light intensity: 549 cd
Maximum beam distance: 47 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes

Powered by NANFU LR03 1.5V AAA Alkaline Battery:
Moonlight 1 level: 0.1 lumens, 388 hours 55 minutes;
Moonlight 2 level: 1 lumens, 152 hours 34 minutes;
Moonlight 3 level: 2 lumens, 74 hours 12 minutes;
Low level: 8 lumens, 20 hours 54 minutes;
Medium level: 30 lumens - 2 lumens, 3 hours 11 minutes + 20 hours 24 minutes;
High level: 80 lumens - 60 lumens - 2 lumens, 3 minutes + 59 minutes + 44 minutes;
Turbo level: 170 lumens - 60 lumens - 2 lumens, 1 minutes + 57 minutes + 44 hours 17 minutes;
Strobe: 170 lumens
Beacon: 170 lumens
SOS: 170 lumens
Maximum light intensity: 549 cd
Maximum beam distance: 47 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes

Technical Data of Nichia 519A-V1 4000K High CRI R9080
Power by Mankerlight 300mAh 3.7V USB-C 10440 li-ion battery:
Moonlight 1 level: 0.1 lumens, 277 hours 25 minutes;
Moonlight 2 level: 0.8 lumens, 104 hours 30 minutes;
Moonlight 3 level: 1.5 lumens, 53 hours 25 minutes;
Low level: 20 lumens, 6 hours 06 minutes;
Medium level: 60 lumens - 4 lumens, 1 hours 27 minutes + 1 hours 37 minutes;
High level: 210 lumens - 145 lumens - 4 lumens, 2 minutes + 26 minutes + 2 hours 30 minutes;
Turbo level: 400 lumens - 145 lumens - 4 lumens, 1 minutes + 24 minutes + 2 hours 45 minutes;
Strobe: 400 lumens
Beacon: 400 lumens
SOS: 400 lumens
Maximum light intensity: 954 cd
Maximum beam distance: 62 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes

Powered by Panasonic Eneloop Pro 950 mAh 1.2V AAA Ni-MH Battery:
Moonlight 1 level: 0.1 lumens, 170 hours 49 minutes;
Moonlight 2 level: 0.8 lumens, 73 hours 11 minutes;
Moonlight 3 level: 1.5 lumens, 36 hours 32 minutes;
Low level: 6 lumens, 8 hours 48 minutes;
Medium level: 20 lumens - 1.5 lumens, 2 hours 12 minutes + 54 minutes;
High level: 60 lumens - 45 lumens - 1.5 lumens, 3 minutes + 50 minutes + 1 hour 28 minutes;
Turbo level: 130 lumens - 45 lumens - 1.5 lumens, 1 minute + 54 minutes + 1 hour 48 minutes;
Strobe: 130 lumens
Beacon: 130 lumens
SOS: 130 lumens
Maximum light intensity: 369 cd
Maximum beam distance: 38 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes

Powered by NANFU LR03 1.5V AAA Alkaline Battery:
Moonlight 1 level: 0.1 lumens, 388 hours 55 minutes;
Moonlight 2 level: 0.8 lumens, 152 hours 34 minutes;
Moonlight 3 level: 1.5 lumens, 74 hours 12 minutes;
Low level: 6 lumens, 20 hours 54 minutes;
Medium level: 20 lumens - 1.5 lumens, 3 hours 11 minutes + 20 hours 24 minutes;
High level: 60 lumens - 45 lumens - 1.5 lumens, 3 minutes + 59 minutes + 44 minutes;
Turbo level: 130 lumens - 45 lumens - 1.5 lumens, 1 minutes + 57 minutes + 44 hours 17 minutes;
Strobe: 130 lumens
Beacon: 130 lumens
SOS: 130 lumens
Maximum light intensity: 369 cd
Maximum beam distance: 38 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes

Battery Charging
- E02 III comes with one Mankerlight 300mAh 3.7V 10440 li-ion battery with a built-in Type-C USB charging port.
- Our 10440 battery support fast charging USB-C charger (such as QC,PD) and also works via USB-C to USB-C charging.
- Battery charging indicator: plug USB Type-C socket of the included charging cable into the USB-C port of 10440 battery, and connect another USB socket to the adapter. our 10440 battery has built-in intelligent identified charging function. When battery is charging, the indicator will be red. After battery charging is completed, the indicator will change to green.
- Fully charging time: about 30 minutes

Warning
1. Do not shine light directly at anyone eyes.
2. Please remove battery insulation sheet and fully charge battery before initial use.
3. Please check and lubricate the threads regularly with professional lubricant.
4. Please remove battery from the flashlight during long term storage.
5. Please recharge the battery every 2-3 months when left unused for a prolonged time.
