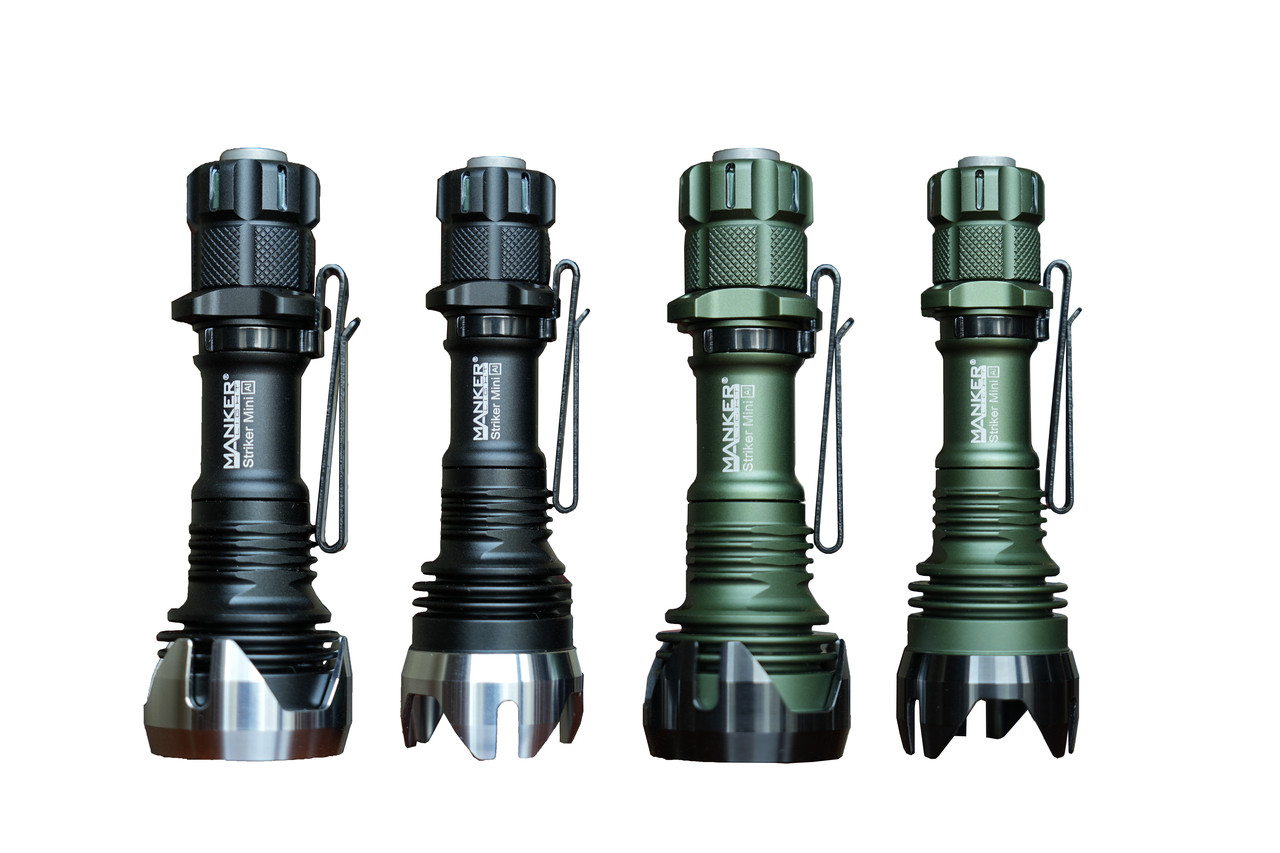

Striker Mini Pocket EDC Flashlight & Tactical Flashlight

Striker Mini is the first palm size EDC flashlight with two-way strike bezel on the market.
430 Meters Longest Range / 635 Lumens Output / Multi-fuel / Dual Constant Current Drivers / Ultra-compact Size / Two-way Pocket Clip /

Dual Positioning: Striker Mini is the Longest Range Pocket EDC Flashlight in 14500 / AA Class, also the Smallest Tactical Flashlight on the Market.

1. Ultra-compact Size, Lightweight for Perfect Everyday Carry - Length is 4.0 inches (102 mm) and weighs only 2.88 ounces (81.6 grams)
2. High Efficiency Performance in its Size - Utilizes a high efficiency Osram KW CSLNM1.TG LED to offer a max. 635 lumen output, max. 430 meters (1411 feet) beam distance.
3. Multi-fuel - Uses Mankerlight 920mAh rechargeable protected 14500 lithium battery with Type-C USB port (Included), also accepts Ni-MH AA, Alkaline AA and other AA-size batteries on the market.
4. Single Tail-switch Control for One-handed Operation - Adopts tactical forward-click switch and set only two modes (High/ Low) + hidden strobe. Slightly tap to turn the light, release it the light will go out. Full press to constantly turn on / off the light. Half press to cycle through the modes (High - Low). Fast half press 2 time to activate hidden strobe. The light will automatically reset to High mode when off for longer than 2 seconds.
5. High-cost, Durable Construction & Engineering - the whole housing such as the head, the tube and tailcap are made by aluminum alloy with type III military spec and a hard anodized finish; Two-way strike bezel, tactical ring and two-way clip are made by stainless steel material; IP68 rated, dust-tight and waterproof to 2 meters; 1.5 meters impact resistance tested. The electronics of the light are designed with high efficient constant current driver that enable the light have the constant brightness beam without flashing well as integrated temperature sensor with temperature regulation to prevent overheating. The employed thermoelectric separation technology ensures heat generated from the LED and circuit is transferred to the exterior rapidly through an accommodated copper substrate. driving the Osram KW CSLNM1.TG LED to its fullest potential while extending its life span.
6. Unique Two-way Strike Bezel - Made by 304 stainless steel material with anti-fingerprint (natural color) or PVD black coating, Trapezoidal thread design for easy installation and removal through rotating bezel. Two-way means Striker Mini strike bezel can be installed in two directions. If jagged edge attack head is up-ward the lighting direction for self-defense, night combat and glass breaking. if remove and reverse install strike bezel for a less aggressive and subtle look. Easy carry it to go through security in daily activities.
7. Well-made Two-way Pocket Clip - Made by 304 stainless steel material with black plating. this two-way clip allows attaching of the light in up or down-ward directions. so making it easy to be attached to the edge of hat for hands-free use during activities, attach to the backpack, tool bag, front pocket etc for easy carry.
8. Full Metal Tactical Ring - Made by Aerospace Aluminum Alloy with Type III Hard Anodizing finish, anti-rolling design, rugged, durable and built for tough situations. And also built-in two lanyard hole on tactical ring for attaching the lanyard (included in accessory) to make easy carry everyday.
9. Additional EDC Element (Tritium Glow Bar Slots Design) - The total quantity is 7 (6 slots locates at the tail housing, 1 slot locates at button cap) which means it has different possibilities of tritium vials combo. The end users can install 6*1.5 mm tritium or glow sticks to make flashlight different with the others in dark night and make the life colorful.
10. Versatile Usage Applicable - Personal EDC (everyday carry gear) / PSK / Home use / Emergency / Outdoor Activities (Camping, Hiking, Cycling) / Inspection / Daily Tasks / Self Defense / Night Searching / Tactical / Law Enforcement.

Specifications
• Light source: 1x Osram KW CSLNM1.TG LED
• Light Modes: High / Low + Hidden Strobe
• Output: 635 lm / 50 lm / 635 lm (20Hz) (powered by 14500 USB-C Li-ion Battery)
• Runtime: 3 min~1 hrs 15 min~40 min / 6 hrs 30 min / - (powered by 14500 USB-C Li-ion Battery)
• Battery: 1x 14500 li-ion / 1x Alkaline AA / 1x Ni-MH AA
• Max Beam Distance: 430 meters (1411 feet)
• Working Voltage: 0.9 V - 4.2 V
• Driver: High Efficiency Constant Current Circuit (Both 14500 and AA)
• Body Material: Aerospace Aluminum Alloy with Type III Hard Anodized
• Strike Bezel Material: 304 Stainless Steel with Anti-fingerprint (Natural color) or PVD Black Coating
• Clip Material: 304 Stainless Steel with Black Plated
• Button Material: 304 Stainless Steel with Sandblasted
• Contact Spring Retainer Material: Phosphore Bronze / Gold Plated
• Lens: Dual-sided AR coated, 99% transmittance toughened Glass
• Optic: Smooth (SMO) Aluminum Reflector with Vacuum Plated
• Switch: Tactical Forward-click Switch (Mechanical Switch)
• Tritium: 6 slots in Tail, 1 in Button Cap. (fit for 6*1.5 mm)
• Size: 102 mm (Length) x 35 mm (Head diameter) x 16.8 mm (Body diameter) x 23 mm (Tail diameter)
• Weight: 81.6 gram or 2.88 oz (Without battery); 103.3 gram or 3.64 oz (with 14500 battery)
• Impact Resistance: 1.5 meters
• Waterproof: IP68, 2 meter underwater for 30 minutes

Package content
1x Mankerlight Striker Mini LED flashlight
1x Stainless steel two-way clip (sometime the clip has been installed on Striker mini tube, sometime it stays in accessory)
1x Mankerlight 920 mAh Type-C USB rechargeable 14500 lithium battery
1x Type-C USB charging cable
1x Lanyard
1x Spare waterproof o-ring
1x User manual

Operating Instructions
Light modes: High / Low + hidden Strobe
Tactical forward click switch (mechanical switch): Slightly tap to turn the light, release it the light will go out. Full press till a click sound is heard to constantly turn ON /OFF the light.

- Half-press to cycle through the modes (High/Low), full press till a click sound is heard to constantly turn on High (or Low).
- Quickly double half-press to activate strobe, full press till a click sound is heard to constantly turn on Strobe.
- Full press till a click sound is head to turn on High mode, and full press it again the light will turn off; keep full press it to constantly on Low, and full press it again the light will turn off;
- The light will automatically reset to High mode when OFF for longer than 2 seconds.

Battery Charging
- Striker Mini comes with one Mankerlight 920mAh 14500 li-ion battery with a built-in Type-C USB charging port.
- Our 14500 battery support fast charging USB-C charger (such as QC,PD) and also works via USB-C to USB-C charging.
- Battery charging indicator: plug USB Type-C socket of the included charging cable into the USB-C port of 14500 battery, and connect another USB socket to the adapter. our 14500 battery has built-in intelligent identified charging function. When battery is charging, the indicator will be red. After battery charging is completed, the indicator will change to green.
- Fully charging time: about 2 hours via universal charging adapter.

Technical Data
Powered by Mankerlight 14500 USB-C li-ion battery:
Low: 50 lumens, 6 hours 30 minutes
High: 635 lumens ~ 260 lumens ~ 8 lumens, 3 minutes + 1 hours 15 minutes + 40 minutes
Strobe: 635 lumens 20Hz
Beam intensity: 4,225 cd / Low; 46,225 cd / High
Beam distance: 130 m / Low; 430 m / High
Impact resistance: 1.5m
Waterproof standard: IP68, 2m

Powered by AA Ni-MH Battery:
Low: 8 lumens, 30 hours
High: 265 lumens ~ 100 lumens ~ 8 lumens, 40 second + 1 hours 32 minutes + 1 hours
Strobe: 265 lumens 20Hz
Beam intensity: 900 cd / Low; 17,556 cd / High
Beam distance: 60 m / Low; 265 m / High
Impact resistance: 1.5m
Waterproof standard: IP68, 2m

Powered by AA Alkaline Battery:
Low: 8 lumens, 26 hours
High: 220 lumens ~ 80 lumens ~ 8 lumens, 1 minutes + 36 minutes + 12 hours 30 minutes
Strobe: 220 lumens 20Hz
Beam intensity: 900 cd / Low; 15,625 cd / High
Beam distance: 60 m / Low; 250 m / High
Impact resistance: 1.5m
Waterproof standard: IP68, 2m

Warning
1. Do not shine light directly at anyone eyes
2. Please remove dust-proof film from lens before initial use
3. Please remove battery insulation sheet and fully charge battery before initial use
4. Please check and lubricate the threads regularly with professional lubricant
5. Please recharge the battery every 3 months when left unused for a prolonged time.
