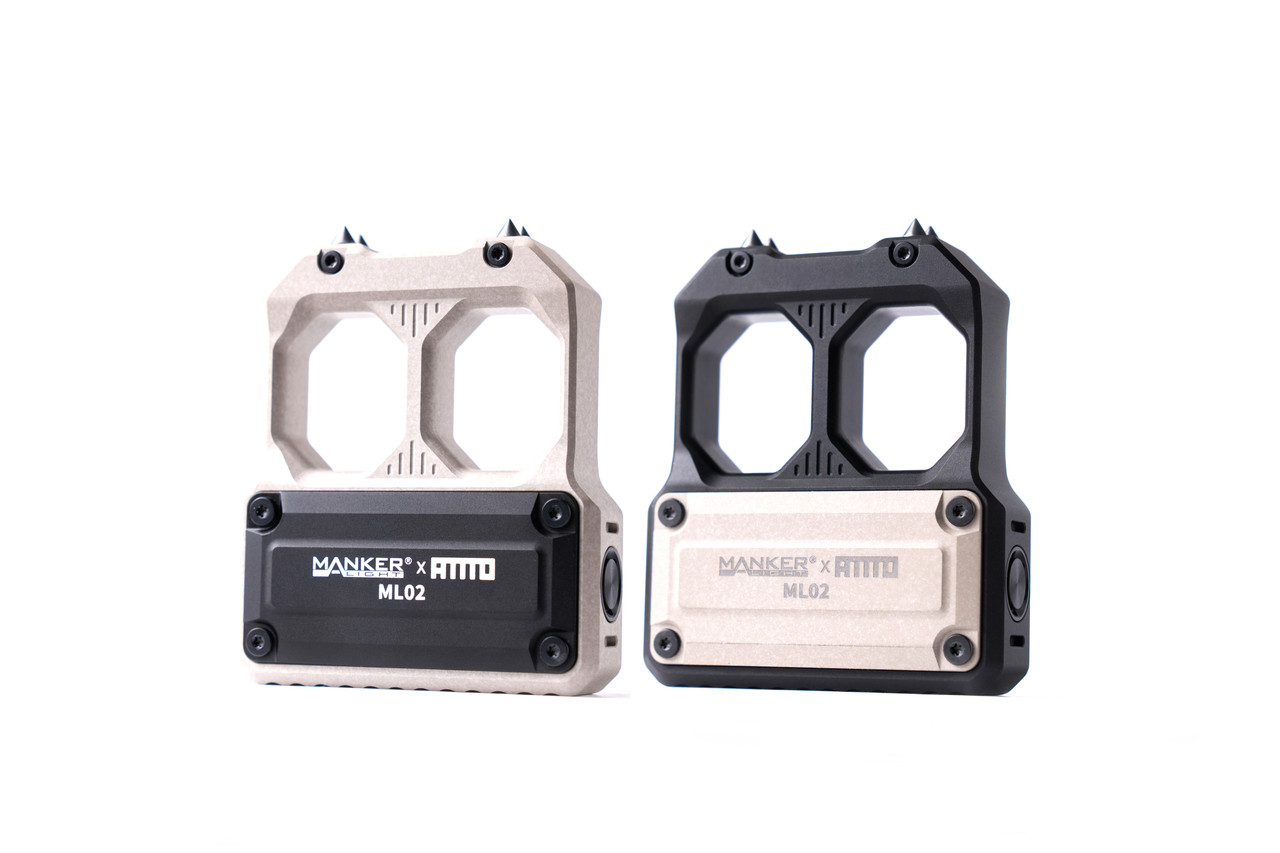

ML02 Multi Purpose EDC Tactical Flashlight

$64.95
SKU:
ML02 - AL - Black(main color)

 Product Description

ML02 is Premium Multi-purpose Everyday Carry Tactical Flashlight
EDC Tactical Collection / 1,050 Lumens Illumination / One-step Strobe / Versatile / Intuitive

- Mankerlight x AMMO co-designed
- Precision milled from solid aluminum material
- Gently curved surfaces and chamfer milled surfaces allow for a comfortable hand-touch feeling
- Perfect palm-fitting size, ideal for everyday carry
- Lightweight cut-out design
- Incredibly strong, stiff and durable
- Tungsten steel strike bezel design, breaks glass easily, ideal for self-defense.
- Tritium slot design ensures that you can effortlessly locate flashlight when you need it the most.
- 1,050 lumens illumination plus one-step fast strobe
- Customized PMMA TIR lens ensure a wide beam
- Friendly & simple user interface, easy one-hand operation
- High efficiency constant current driver design
- Advanced intelligent temperature regulation
- Electronic lock-out prevents accidental activation
- Extreme IP68 Waterproof, regardless of the rain weather
- Drop-resistant beyond 2 meters


Specifications
• Light source: 1x 6500K cool white LED emitter
• Optic: Customized PMMA TIR lens
• Light modes: Low / Medium / High / Turbo / Strobe
• Output: 5 lumens / 180 lumens / 500 lumens ~ 6 lumens / 1,050 lumens ~ 315 lumens ~ 6 lumens / 1,050 lumens
• Runtime: 30 hours / 3 hours 15 minutes / 50 minutes + 30 minutes / 60 seconds + 1 hours 10 minutes + 30 minutes / -
• Battery: Built-in Mankerlight 850 mAh 3.7V 16340 li-ion battery
• Max Beam Distance: 110 meters (360.89 feet)
• Working voltage: 2.8 V - 4.2 V
• Driver: High efficiency constant current circuit (Non-PWM)
• Body Material: Aerospace aluminum alloy with micro-arc oxidation(M.A.O.) and type III military grade hard-anodized
• Button type: Electronic click (custom)
• Strike bezel Material: Tungsten steel (removable)
• Tritium: 2 slots around the button. (fit for 6*1.5 mm tritium)
• Size: 79 mm (length) x 65.3 mm (wide) / 3.11" x 2.57"
• Weight: 130.3 gram / 4.60 oz
• Impact resistance: Beyond 2 meters
• Waterproof: IP68 rated, under 2 meters water in 30 minutes


Package content
1x Mankerlight ML02 LED Flashlight (without tips)
4x Removable tips
4x M2.5 screws
1x Screwdriver tool
1x Type-C USB charging cable
1x User manual


Operating Instructions
LOCK-OUT: Locking out the flashlight when not in use is highly recommended. From OFF, Triple click (simple click 3 times fast) to LOCK OUT. The flashlight will then blink two times to indicate that it has been LOCKED. To UNLOCK, triple click (click 3 times fast) again, flashlight will turn on to indicate it has been unlocked.
General Mode: From OFF, simply press and hold down to low level. Press and hold down to cycle through the different levels: Low > Medium > High > back to Low. From any of these levels, click once to turn OFF and store that last level into level memory.
Turbo: From OFF or from other levels, double click to turn on Turbo. If a single click after this turns the flashlight OFF or if double click again or long press after this turns to turn on the level of general mode last used.
One-step Strobe: From OFF, click once to turn on Strobe. If a single click after this turns the flashlight OFF or if long press after this turns to turn on the level of general mode last used.


Battery Charging
ML02 has built-in one Mankerlight 850mAh 16340 li-ion battery and also integrated Type-C USB charging port. Pull silicone USB cover, connect flashlight to a power adapter via the provided USB-C charging cable. Different indicator lights will indicate battery charging status:

- When battery is charging, red light constant on
- When battery has been full charged, red light turn off, and then blue light will constant on.

Low battery warning indicator
When battery voltage < 3.0V, flashlight downshifts to low level brightness; If then battery voltage = 2.8V, flashlight will turn off automatically. (Ratio Error: ± 0.1V, using different battery)

Technical Data
Low: 5 lumens, 30 hours
Medium: 180 lumens, 3 hours 15 minutes
High: 500 lumens - 6 lumens, 50 minutes + 30 minutes
Turbo: 1,050 lumens - 315 lumens - 6 lumens, 60 seconds + 1 hours 10 minutes + 30 minutes
Strobe: 1,050 lumens, -
Beam intensity: 3,025 cd
Beam distance: 110 meters (360.89 feet)
Impact resistance: 2 meters
Waterproof standard: IP68, 2 meters underwater for 30 minutes


Warnings:
1. DO NOT shine light directly at anyone eyes.
2. Please keep the product away from Children aged less than 14 year old.
3. Please recharge the battery every 2-3 months when left unused for a prolonged time.
